Steel Induction Hardened Bar , Hydraulic Piston Rod For industry

  • 1
  • 2

Brand Name : HY

Certification : ISO9001:2008

Place of Origin : China

MOQ : 5 tons

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 30tons a day

Delivery Time : 30days

Packaging Details : Anti rust oil to be applied on material and each rod to be packed in paper sleeve

Surface roughness : Ra≤0.2micron and Rt≤2micro

Name : Induction Hardened bar

Length : 1000mm - 8000mm

Diameter : 6mm - 1000mm

Diameter tolerance : ISO f7

Surface hardness : 850-1150 HV (vickers 100g)

Contact Now

Steel Induction Hardened Bar , Hydraulic Piston Rod For industry

Detailed Product Description

1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr

2. Tensile strength: Not less than 610 N/MM2

3. Yield strength: Not less than 355 N/MM2

4. Advanced inspection apparatus

5. Application: Mining machinery industry, textile / printing industry and so on

6. Case depth:1.5mm - 2.5mm Induction hardness: HRC50 - 60

Detailed Description

1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035

ST52

0.22

1.6

0.55

0.035

0.04

20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20

42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03

0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37

0.80-1.10

2.MECHANCIAL PROPERTIES

Material

T.S N/MM2

Y.S N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22

NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10

Q + T

3. SUPPLY CONDITION

Ground and chrome plated

4. CHROME THICKNESS

20 to 30 micron

5. SURFACE ROUGHNESS

Ra≤0.2 micron and Rt≤2 micro

6. TOLERANCES ON DIA

ISO f7 on the diameter

7.OVALITY

Half of the tolerance ISO f7

8. STRAIGHTNESS

≤0.2MM/M

9. SURFACE HARDNESS

850-1150HV (vickers 100g)

10.COHESION

No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

in water)

11 .POROSITY

Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

Test in natural salt spray according to ASTM B 117-72hours

Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

Good

14. PACKING

Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

All certificate related with material heat treatment and plating is required

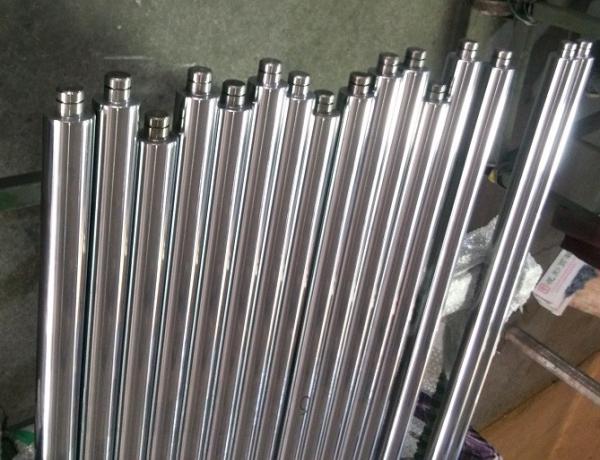

Steel Induction Hardened Bar , Hydraulic Piston Rod For industry

Steel Induction Hardened Bar , Hydraulic Piston Rod For industry
