Diameter 35 - 140mm Micro Alloy Steel Piston Rods With Environmental Protection

  • 1
  • 2

Brand Name : HY

Certification : ISO9001:2008

Place of Origin : China

MOQ : 1 tons

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 30tons a day

Delivery Time : 30days

Packaging Details : Anti rust oil to be applied on material and each rod to be packed in paper sleeve

Product name : Piston rod

Raw material : Non-quenched and tempered steel

Supply condition : Chrome plated

Chrome thickness : 20 - 30 micron

Straightness : Not more than 0.2MM/M

Ovality : Half of the tolerance ISO f7

Contact Now



Diameter 35 - 140mm Micro Alloy Steel Piston Rods With Environmental Protection


Product Description
1. Save manufacturing expenses and avoid waste in the tempering process
2. Shortened processing periods, enhance productivity and reduce the occupied capital.
3. The mechanical property is correspond to quenched and tempered 42CrMo4, 40Cr and CK45 or over
them and very uniform on the whole cross section.
4. Turning performance: Turning performance is commensurate to 42CrMo4, 40Cr and CK45 or be
superior to them.
5. Hardness: Hardness is more uniform on the whole cross section than quenched and tempered
42CrMo4, 40Cr and CK45.
6. Mainly used in mechanical manufacturing for the directly turning part of shaft and rod, ect.

Detailed Description

1. MATERIAL: HY4700, HY4520

2. CHEMICAL COMPOSITION(%)

Material

C%

Mn%

Si%

S%

P%

V%

Ni

Cr%

Mo

Cu

HY4700

0.38-0.45

1.20 ~1.60

0.30~0.50

≤0.035

≤0.020

0.05~0.15

≤0.25

0.10~0.20

≤0.15

0.25

HY4520

0.40 ~0.48

0.80 ~1.40

0.15 ~0.35

≤0.035

≤0.035

≤0.15

≤0.25

≤0.25

≤0.15

≤0.25



3. MECHANICAL PROPERTIES

Material

MECHANICAL PROPERTIES

Surface hardness(HBW)

Rm(MPa)

Rel(MPa)

A%

Z%

KU2(J)

HY4700

Φ35 - Φ100

900 - 1100

≥650

≥16

≥35

≥39

270-340

>Φ100 - Φ140

850 - 950

≥600

≥16

≥35

≥39

270-340

HY4520

Φ40 - Φ100

750 - 900

≥520

≥19

≥40

≥39

230-290

>Φ100~Φ140

750 - 900

≥520

≥17

≥35

≥39

230-290



4. SUPPLY CONDITION
Ground and chrome plated
5. CHROME THICKNESS
20 to 30 micron
6. TOLERANCES ON DIA
ISO f7 on the diameter
7 .SURFACE HARDNESS
850-1150HV (vickers 100g)
8.OVALITY
Half of the tolerance ISO f7
9. STRAIGHTNESS
≤0.2MM/M
10. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micron
11. COHESION

No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees

and cooling in water)
12. CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-120hours
Results evaluation according to ISO 4540 RATING 7-10

13.POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

14. WELDABILITY
Good
15. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
16. CERTIFICATE
All certificate related with material heat treatment and plating is required

Diameter 35 - 140mm Micro Alloy Steel Piston Rods With Environmental Protection




















































Product Tags:

chrome plated piston rod



chrome plated steel rod


Wholesale Diameter 35 - 140mm Micro Alloy Steel Piston Rods With Environmental Protection from china suppliers

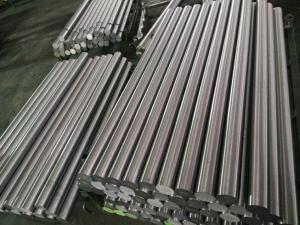

Diameter 35 - 140mm Micro Alloy Steel Piston Rods With Environmental Protection Images
